Cryogenic Valve
Environmentally Friendly LH₂, LNG, LAr, LO₂, LN₂, etc.
MIYAIRI VALVE offers a full lineup of valves for cryogenic facilities.
Miyairi Valve Mfg. Co., Ltd. began by manufacturing valves for Japan’s first domestic Cryogenic tank lorry. Since then, we have expanded our product range to include reliable valves for plant piping systems.
Drawing on years of experience and numerous achievements, our products are designed not only for safety, but also to meet a wide range of needs, including maintaining high airtightness.

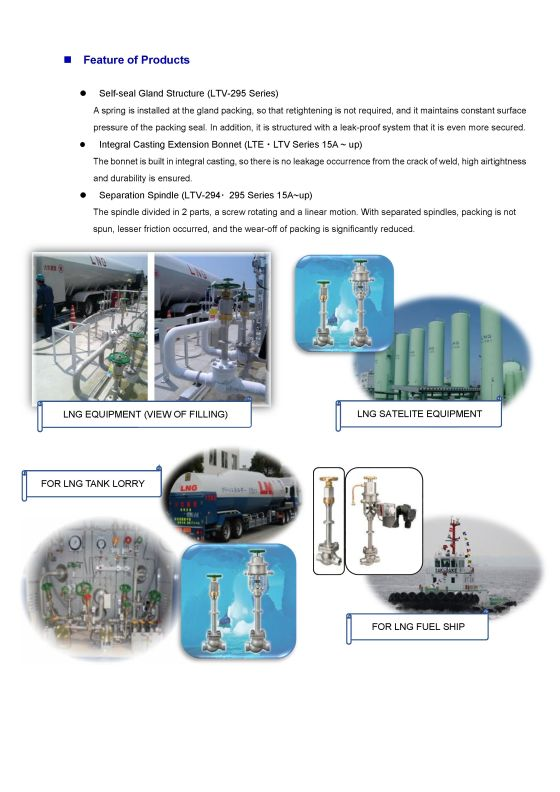

Valves for Cryogenic LineUp

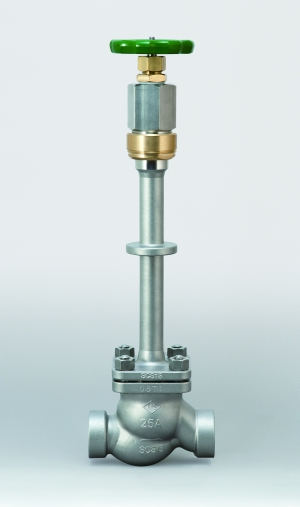

Extension Bonnet Globe Valve for Cryogenic
LTV-295
Used as a stop valve in the piping. The extension bonnet prevents the operation part from freezing.
Materials
| Body | SCS13 |
|---|---|
| Bonnet | SCS13 |
| Spindle | SUS304 |
| Seat Packing | PCTFE |
| Disk | SUS304 |

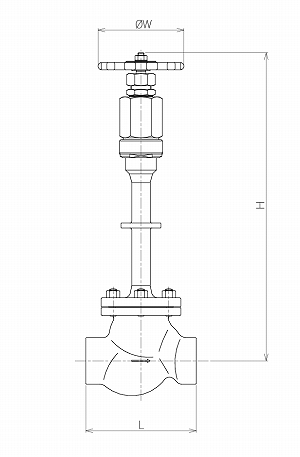

dimensions
| SIZE | L | H （closed） | W |
|---|---|---|---|
| 15A | 90 | 356 | 80 |
| 20A | 100 | 356 | 80 |
| 25A | 120 | 379 | 80 |
| 32A | 130 | 460 | 140 |
| 40A | 150 | 460 | 140 |
| 50A | 180 | 504 | 140 |
Short Bonnet Globe Valve for Cryogenic
LTV-294
Mainly used for vapor line.
Materials
| Body | SCS13 |
|---|---|
| Bonnet | SCS13 |
| Spindle | SUS304 |
| Seat Packing | PCTFE |
| Disk | SUS304 |

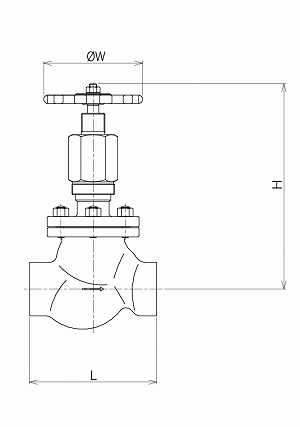

dimensions
| SIZE | L | H （closed） | W |
|---|---|---|---|
| 15A | 90 | 189 | 80 |
| 20A | 100 | 189 | 80 |
| 25A | 120 | 198 | 80 |
| 32A | 130 | 268 | 140 |
| 40A | 150 | 268 | 140 |
| 50A | 180 | 291 | 140 |

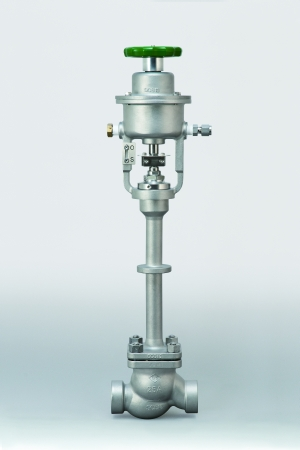

Emergency Shut-off Valve for Cryogenic
LTE-692
Shuts off and blocks the flow of Cryogenic in an emergency situation such as a breakage of a pipeline.
Pneumatic Operation Type / Fusible plug attached
Materials
| Body | SCS13 |
|---|---|
| Bonnet | SCS13 |
| Spindle | SUS304 |
| Seat Packing | PCTFE |
| Disk | SUS304 |
dimensions
| SIZE | L | H （closed） | W |
|---|---|---|---|
| 25A | 120 | 487 | 80 |
| 32A | 130 | 558 | 80 |
| 40A | 150 | 558 | 80 |
| 50A | 180 | 646 | 80 |

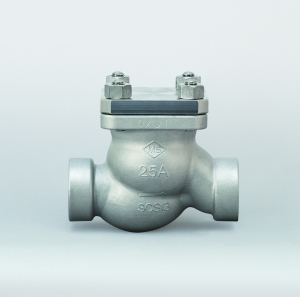

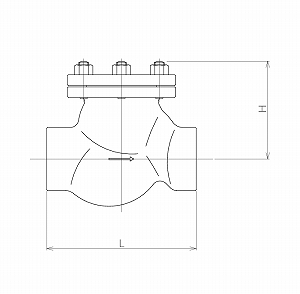

Check Valve for Cryogenic
LTC-492
Employing Lift Type, prevents reverse flow.
Materials
| Body | SCS13 |
|---|---|
| Cover | SUS304 |
| Seat Packing | PCTFE |
| Disk | SUS304 |
dimensions
| SIZE | L | H |
|---|---|---|
| 15A | 90 | 72 |
| 20A | 100 | 72 |
| 25A | 120 | 82 |
| 32A | 130 | 107 |
| 40A | 150 | 107 |
| 50A | 180 | 118 |

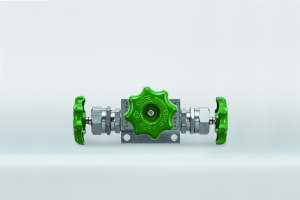

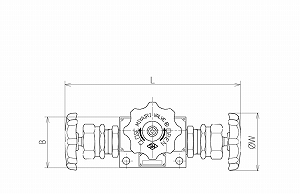

Level Gauge Valve for Cryogenic
LTV-G
Used as a gauge valve for differential-pressure-type level gauge.
It is integrated in one body with an upper gauge valve, a lower gauge valve and a balancing valve.
Materials
| Body | SUS304 |
|---|---|
| Bonnet | SUS304 |
| Spindle | SUS304 |
| Seat Packing | PCTFE |
dimensions
| SIZE | L （closed） | B | W |
|---|---|---|---|
| 8A | 170 | 49 | 56 |

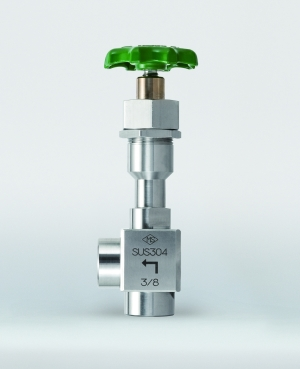

Extension Bonnet Angle Valve for Cryogenic
LTV-295SL
Used as a bleeder valve or a gauge valve for pressure gauge.
Materials
| Body | SUS304 |
|---|---|
| Bonnet | SUS304 |
| Spindle | SUS304 |
| Seat Packing | PCTFE |
dimensions
| SIZE | H （closed） | L1 | L2 | W |
|---|---|---|---|---|
| 10A | 123 | 30 | 30 | 56 |

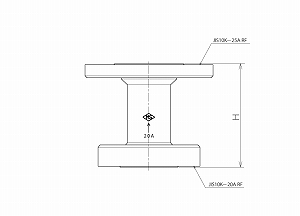

Safety Valve for Cryogenic Lorry
LPR-670LTF
Used as an inner tank safety valve.
We have 2 kinds:main safety valve, substitutional safety valve.
Materials
| Body | SCS13 |
|---|---|
| Seat Packing | PTFE |
dimensions
| SIZE | H |
|---|---|
| 20A×25A | 103 |

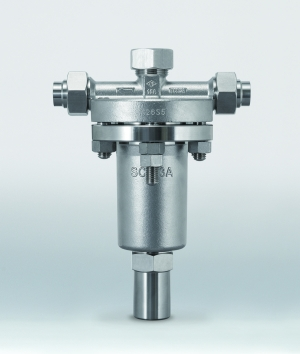

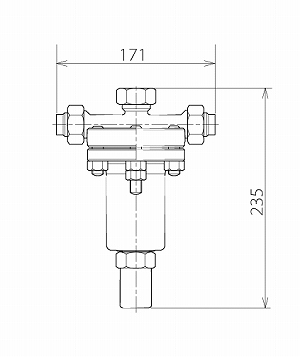

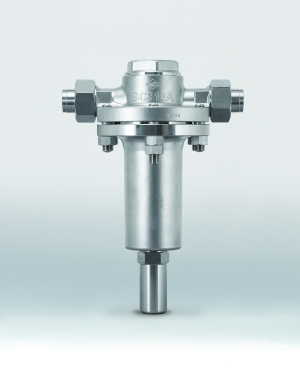

Economizer for Cryogenic Facility
LTR-E
Installed in a pressure reducing line.
When CE inner tank pressure is beyond the set value, the valve is opened to lower the pressure.
Materials
| Body | SUS304 |
|---|---|
| Trim | SUS304 |
| Seat Packing | R.PTFE |
dimensions
| SIZE | L | H |
|---|---|---|
| 15A | 171 | 235 |

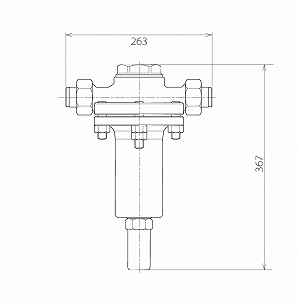

Build-up Regulator for Cryogenic Facility
LTR-B
Installed in a pressure increasing line.
When CE inner tank pressure is below the set value, the valve is opened to increase the pressure.
Materials
| Body | SUS304 |
|---|---|
| Trim | SUS304 |
| Seat Packing | PTFE |
dimensions
| SIZE | L | H |
|---|---|---|
| 25A | 263 | 367 |
